Skrypty opracowane w ramach zajęć.
Klasa JDBCResource.java - ( [listing dokumentu] [link do dokumentu]
package zti.lab04;
import jakarta.ws.rs.Consumes;
import jakarta.ws.rs.DELETE;
import jakarta.ws.rs.GET;
import jakarta.ws.rs.POST;
import jakarta.ws.rs.PUT;
import jakarta.ws.rs.Path;
import jakarta.ws.rs.PathParam;
import jakarta.ws.rs.Produces;
import jakarta.ws.rs.core.MediaType;
import zti.model1.Database;
import zti.model1.Person;
@Path("/jdbc/person")
public class JDBCResource {
@GET
@Produces({MediaType.APPLICATION_JSON})
public Person[] get() {
System.out.println("GET");
Database data = new Database();
return data.getPersonList().toArray(new Person[0]);
}
@GET
@Path("{id}")
@Produces({MediaType.APPLICATION_JSON})
public Person get(@PathParam("id") String id) {
System.out.println("GET");
Database data = new Database();
return data.readPerson(id);
}
@POST
@Consumes({MediaType.APPLICATION_JSON})
@Produces({MediaType.TEXT_PLAIN})
public String post(Person person) {
System.out.println("POST");
Database data = new Database();
data.createPerson(person);
return "add record" ;
}
@PUT
@Consumes({MediaType.APPLICATION_JSON})
@Produces({MediaType.TEXT_PLAIN})
public String put(Person person) {
System.out.println("PUT");
Database data = new Database();
data.updatePerson(person);
return "update record" ;
}
@DELETE
@Path("{id}")
@Produces({MediaType.TEXT_PLAIN})
public String delete(@PathParam("id") String id) {
System.out.println("DELETE");
Database data = new Database();
data.deletePerson(id);
return "delete record" ;
}
}
Klasa Person.java - ( [listing dokumentu] [link do dokumentu]
package zti.model1;
public class Person {
private String lname ;
private String fname ;
private String city ;
private String email ;
private String tel ;
private Integer id;
public Person() {}
public Person(String lname, String fname, String city, String email, String tel, Integer id){
this.lname = lname;
this.fname = fname;
this.city = city;
this.email = email;
this.tel = tel;
this.id = id;
}
public void setFname( String newValue ){ fname = newValue ; }
public String getFname() { return fname ; }
public void setLname ( String newValue ) { lname = newValue ; }
public String getLname() { return lname ; }
public void setCity ( String newValue ) { city = newValue ; }
public String getCity() { return city ; }
public void setEmail ( String newValue ) { email = newValue ; }
public String getEmail() { return email ; }
public void setTel ( String newValue ) { tel = newValue ; }
public String getTel() { return tel ; }
public void setId ( Integer newValue ) { id = newValue ; }
public Integer getId() { return id ; }
}
Klasa Database.java - ( [listing dokumentu] [link do dokumentu]
package zti.model1;
import javax.naming.Context;
import javax.naming.InitialContext;
import javax.naming.NamingException;
import javax.sql.DataSource;
import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.sql.Statement;
import java.util.ArrayList;
import java.util.List;
public class Database {
private Person person;
private Connection conn = null;
private PreparedStatement prestmt = null;
private Statement stmt = null;
private ResultSet rset = null;
private List<Person> list = new ArrayList<Person>();
public Database() {
try {
Context context = new InitialContext();
DataSource ds1 = (DataSource) context.lookup("java:comp/env/jdbc/postgres");
conn = ds1.getConnection();
} catch (NamingException ex) {
System.out.println(ex.getMessage());
} catch (SQLException ex) {
System.out.println(ex.getMessage());
}
}
public void createPerson(Person person) {
try {
prestmt = conn.prepareStatement("INSERT INTO person (fname, lname, email, city, tel) VALUES (?,?,?,?, ?)");
prestmt.setString(1, person.getFname());
prestmt.setString(2, person.getLname());
prestmt.setString(3, person.getEmail());
prestmt.setString(4, person.getCity());
prestmt.setString(5, person.getTel());
prestmt.executeUpdate();
} catch (SQLException ex) {
System.out.println(ex.getMessage());
} finally {
try {
if (prestmt != null) {
prestmt.close();
}
if (conn != null) {
conn.close();
}
} catch (SQLException ex) {
System.out.println(ex.getMessage());
}
}
return;
}
public void deletePerson(String id) {
try {
// System.out.println("Deleted record" + id);
Integer ident = Integer.parseInt(id);
prestmt = conn.prepareStatement("DELETE FROM person WHERE id = ?");
prestmt.setInt(1, ident);
prestmt.executeUpdate();
} catch (SQLException ex) {
System.out.println(ex.getMessage());
} finally {
try {
if (prestmt != null) {
prestmt.close();
}
if (conn != null) {
conn.close();
}
} catch (SQLException ex) {
System.out.println(ex.getMessage());
}
}
return;
}
public Person readPerson(String id) {
try {
Integer ident = Integer.parseInt(id);
prestmt = conn.prepareStatement("SELECT * FROM person WHERE id = ? ");
prestmt.setInt(1, ident);
ResultSet rset = prestmt.executeQuery();
person = new Person();
while (rset.next()) {
person.setFname(rset.getString("fname"));
person.setLname(rset.getString("lname"));
person.setEmail(rset.getString("email"));
person.setTel(rset.getString("tel"));
person.setCity(rset.getString("city"));
person.setId(rset.getInt("id"));
}
} catch (SQLException ex) {
System.out.println(ex.getMessage());
} finally {
try {
if (prestmt != null) {
prestmt.close();
}
if (conn != null) {
conn.close();
}
} catch (SQLException ex) {
System.out.println(ex.getMessage());
}
}
return person;
}
public void updatePerson(Person person) {
try {
// System.out.println("Deleted record" + person.getId());
prestmt = conn.prepareStatement("UPDATE person SET fname=?,lname=?,email=?,city=?,tel=? WHERE id = ?");
prestmt.setString(1, person.getFname());
prestmt.setString(2, person.getLname());
prestmt.setString(3, person.getEmail());
prestmt.setString(4, person.getCity());
prestmt.setString(5, person.getTel());
prestmt.setInt(6, person.getId());
prestmt.executeUpdate();
} catch (SQLException ex) {
System.out.println(ex.getMessage());
} finally {
try {
if (prestmt != null) {
prestmt.close();
}
if (conn != null) {
conn.close();
}
} catch (SQLException ex) {
System.out.println(ex.getMessage());
}
}
return;
}
public List<Person> getPersonList() {
try {
stmt = conn.createStatement();
String sql = "SELECT * FROM public.person ORDER BY lname";
rset = stmt.executeQuery(sql);
while (rset.next()) {
person = new Person();
person.setFname(rset.getString("fname"));
person.setLname(rset.getString("lname"));
person.setEmail(rset.getString("email"));
person.setTel(rset.getString("tel"));
person.setCity(rset.getString("city"));
person.setId(rset.getInt("id"));
list.add(person);
}
rset.close();
} catch (SQLException ex) {
System.out.println(ex.getMessage());
} finally {
try {
if (prestmt != null) {
prestmt.close();
}
if (conn != null) {
conn.close();
}
} catch (SQLException ex) {
System.out.println(ex.getMessage());
}
}
return list;
}
}
public Lab04Application() {}
public Set<Class<?>> getClasses() {
HashSet<Class<?>> set = new HashSet<Class<?>>();
set.add(HelloResource.class);
set.add(JDBCResource.class);
return set;
}

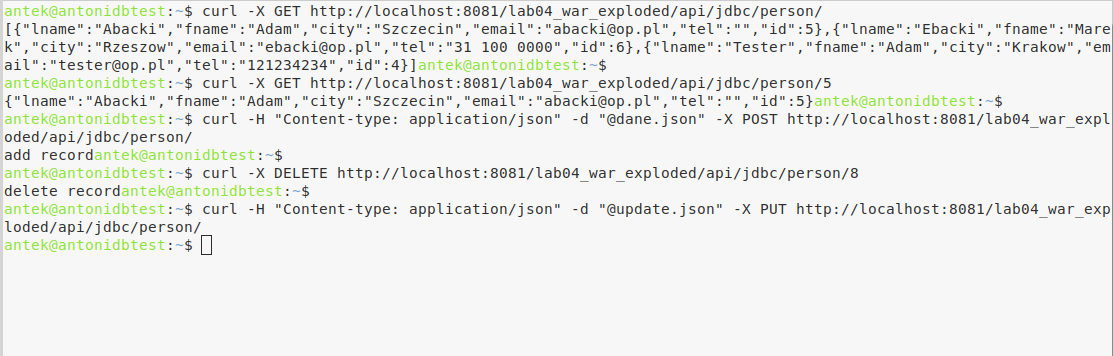

curl -X GET http://localhost:<port>/<context>/api/jdbc/person/
curl -X GET http://localhost:<port>/<context>/api/jdbc/person/3
curl -H "Content-type: application/json" -d "@dane.json" -X POST http://localhost:<port>/<context>/api/jdbc/person/Uwaga. Rekord dodajemy z pliku dane.json zawierającego wprowadzane dane.
{
"fname": "Test",
"lname": "Net",
"city": "Example",
"email": "test.net@example.org",
"tel": "12-345-67890"
}
curl -X DELETE http://localhost:<port>/<context>/api/jdbc/person/{numer}
curl -H "Content-type: application/json" -d "@dane.json" -X PUT http://localhost:<port>/<context>/api/jdbc/person/Plik z danymi do modyfikacji w bazie danych - zawiera atrybut "id". Zapisujemy nasze dane - dane.json.
{"id":"26", "fname":"Marek","lname":"Ebacki","email":"ebacki@wp.pl","city":"Rzeszow","tel":"31 100 0000"}

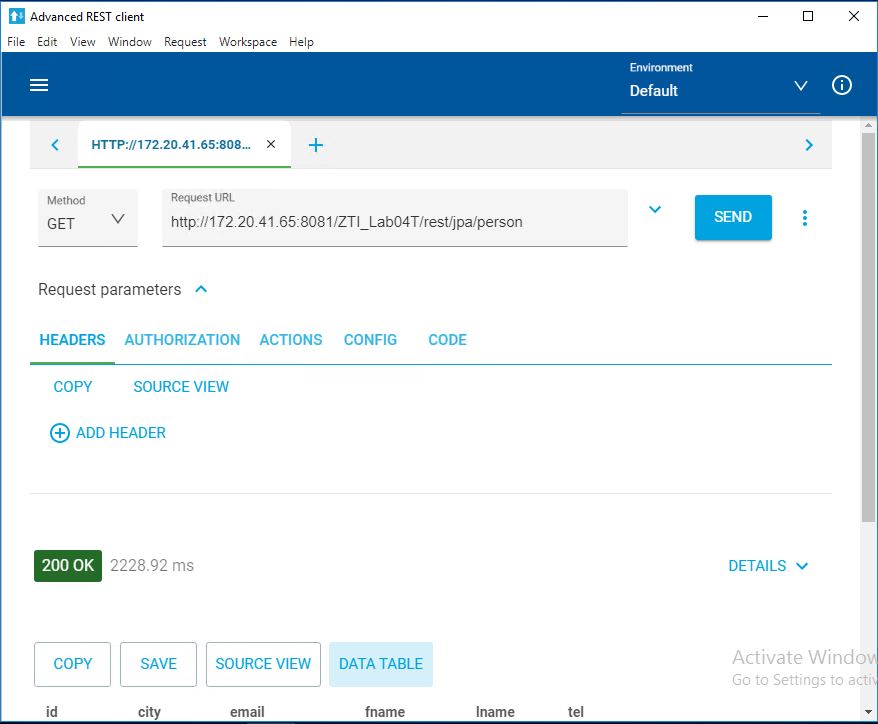

$ sudo apt-get install chromium Strona WWW https://install.advancedrestclient.com/ - Download arc-linux-17.0.9-amd64.deb 79.1 MB Mar 3, 2022 $ sudo apt-get install ../Downloads/arc-linux-17.0.9-amd64.deb
Plik konfiguracyjny persistence.xml - [listing dokumentu] [link do dokumentu]
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<persistence xmlns="https://jakarta.ee/xml/ns/persistence"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="https://jakarta.ee/xml/ns/persistence https://jakarta.ee/xml/ns/persistence/persistence_3_0.xsd"
version="3.0">
<persistence-unit name="PU_Postgresql" transaction-type="RESOURCE_LOCAL">
<non-jta-data-source>java:comp/env/jdbc/postgres</non-jta-data-source>
<class>zti.model2.Person</class>
<properties>
<property name="eclipselink.target-database"
value="org.eclipse.persistence.platform.database.PostgreSQLPlatform" />
<property name="eclipselink.logging.level" value="FINER" />
<property name="eclipselink.logging.logger" value="ServerLogger" />
</properties>
</persistence-unit>
</persistence> Klasa JPAResource.java - ( [listing dokumentu] [link do dokumentu]
package zti.lab04;
import java.util.List;
import java.util.Map;
import jakarta.persistence.EntityManager;
import jakarta.persistence.EntityManagerFactory;
import jakarta.persistence.EntityTransaction;
import jakarta.persistence.Persistence;
import jakarta.ws.rs.Consumes;
import jakarta.ws.rs.DELETE;
import jakarta.ws.rs.GET;
import jakarta.ws.rs.POST;
import jakarta.ws.rs.PUT;
import jakarta.ws.rs.Path;
import jakarta.ws.rs.PathParam;
import jakarta.ws.rs.Produces;
import jakarta.ws.rs.core.MediaType;
import zti.model2.Person;
@Path("/jpa/person")
public class JPAResource {
private EntityManagerFactory managerFactory;
private EntityManager entityManager; // = managerFactory.createEntityManager();
private EntityTransaction entityTransaction;
public JPAResource() {
managerFactory = Persistence.createEntityManagerFactory("PU_Postgresql");
entityManager = managerFactory.createEntityManager();
entityTransaction = entityManager.getTransaction();
}
@GET
@Produces({MediaType.APPLICATION_JSON})
public Person[] get() {
System.out.println("GET");
List<Person> people = null;
try {
@SuppressWarnings("unchecked")
List<Person> resultList = (List<Person>) entityManager.createNamedQuery("findAll").getResultList();
//people = (List<Person>) entityManager.createNamedQuery("findAll").getResultList();
people = resultList;
// manager.close();
} catch (Exception e) {
System.out.println("Failed !!! " + e.getMessage());
}
return people.toArray(new Person[0]);
}
@GET
@Path("{id}")
@Produces({MediaType.APPLICATION_JSON})
public Person get(@PathParam("id") String id) {
System.out.println("GET");
Person entity = (Person) entityManager.find(Person.class, Integer.parseInt(id));
return entity;
}
@POST
@Consumes({MediaType.APPLICATION_JSON})
@Produces({MediaType.TEXT_PLAIN})
public String post(Person person) {
System.out.println("POST");
entityTransaction.begin();
entityManager.persist(person);
entityManager.flush();
entityTransaction.commit();
return "add record" ;
}
@PUT
@Consumes({MediaType.APPLICATION_JSON})
@Produces({MediaType.TEXT_PLAIN})
public String put(Person person) {
System.out.println("PUT");
entityTransaction.begin();
entityManager.merge(person);
entityTransaction.commit();
return "update record" ;
}
@DELETE
@Path("{id}")
@Produces({MediaType.TEXT_PLAIN})
public String delete(@PathParam("id") String id) {
System.out.println("DELETE");
entityTransaction.begin();
Person entity = (Person) entityManager.find(Person.class, Integer.parseInt(id));
entityManager.remove(entity);
entityManager.flush();
entityTransaction.commit();
return "delete record" ;
}
}
Klasa Person.java - ( [listing dokumentu] [link do dokumentu]
package zti.model2;
import java.io.Serializable;
import jakarta.persistence.*;
/**
* The persistent class for the person database table.
*
*/
@Entity (name="Person")
@Table (name="person", schema="public")
@NamedQuery(name="findAll", query="SELECT p FROM Person p ORDER BY p.lname")
public class Person implements Serializable {
private static final long serialVersionUID = 1L;
private Integer id;
private String city;
private String email;
private String fname;
private String lname;
private String tel;
public Person() {
}
@Id
//@SequenceGenerator(name="PERSON_ID_GENERATOR" )
//@GeneratedValue(strategy=GenerationType.SEQUENCE, generator="PERSON_ID_GENERATOR")
@GeneratedValue(strategy=GenerationType.IDENTITY)
public Integer getId() {
return this.id;
}
public void setId(Integer id) {
this.id = id;
}
public String getCity() {
return this.city;
}
public void setCity(String city) {
this.city = city;
}
public String getEmail() {
return this.email;
}
public void setEmail(String email) {
this.email = email;
}
public String getFname() {
return this.fname;
}
public void setFname(String fname) {
this.fname = fname;
}
public String getLname() {
return this.lname;
}
public void setLname(String lname) {
this.lname = lname;
}
public String getTel() {
return this.tel;
}
public void setTel(String tel) {
this.tel = tel;
}
}
public Set<Class<?>> getClasses() {
HashSet<Class<?>> set = new HashSet<Class<?>>();
set.add(HelloResource.class);
set.add(JDBCResource.class);
set.add(JPAResource.class);
return set;
}
Servlet ClientREST.java - ( [listing dokumentu] [link do dokumentu]
package zti.servlets;
import java.io.IOException;
import jakarta.servlet.ServletException;
import jakarta.servlet.annotation.WebServlet;
import jakarta.servlet.http.HttpServlet;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import jakarta.ws.rs.client.Client;
import jakarta.ws.rs.client.ClientBuilder;
import jakarta.ws.rs.client.WebTarget;
import jakarta.ws.rs.core.Response;
/**
* Servlet implementation class ClientREST
*/
@WebServlet("/ClientREST")
public class ClientREST extends HttpServlet {
private static final long serialVersionUID = 1L;
/**
* @see HttpServlet#HttpServlet()
*/
public ClientREST() {
super();
// TODO Auto-generated constructor stub
}
/**
* @see HttpServlet#doGet(HttpServletRequest request, HttpServletResponse response)
*/
protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
// TODO Auto-generated method stub
//response.getWriter().append("Served at: ").append(request.getContextPath());
Client client = ClientBuilder.newClient();
String url = "http://localhost:<port>/<context>/api/jpa/person/";
resp.setContentType("application/json");
Response res ;
// WebTarget target;
if (req.getParameterMap().containsKey("id")) {
//String id = req.getParameterValues("id")[0] ;
String id = req.getParameter("id");
res = client.target(url).path("/{id}").resolveTemplate("id", id).request("application/json").get();
} else {
res = client.target(url).request("application/json").get();
}
resp.getWriter().append(res.readEntity(String.class));
}
/**
* @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse response)
*/
protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
// TODO Auto-generated method stub
doGet(request, response);
}
}

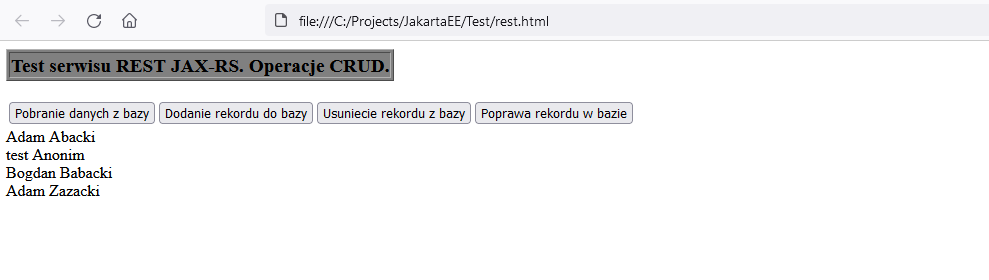

Plik z funkcjonalnością XHR Rest.html - ( [listing dokumentu] [link do dokumentu]
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Ajax: Serwis RESTful</title>
<script type="text/javascript">
var url = "http://localhost:<port>/<context>/api/jpa/person";
// Lista rekordow w bazie
function _list() {
fetch( url )
.then ( response => {
response.json().then ( data => {
var txt = "" ;
for ( let i=0; i<data.length ; i++)
txt += data[i].fname + " " + data[i].lname + "<br/>" ;
document.getElementById('data').innerHTML = '';
document.getElementById('result').innerHTML = txt ;
}) ;
})
}
function _ins_form() { }
function _del_list() { }
function _upd_list() { }
</script>
</head>
<body>
<div style="text-align:center" >
<table border="1" bgcolor="gray">
<tr><th><big>Test serwisu REST JAX-RS. Operacje CRUD.</big></th></tr>
</table>
<br />
<form action="#">
<table><tr>
<td><input type="button" value="Pobranie danych z bazy" onclick="_list()"/></td>
<td><input type="button" value="Dodanie rekordu do bazy" onclick="_ins_form()"/></td>
<td><input type="button" value="Usuniecie rekordu z bazy" onclick="_del_list()"/></td>
<td><input type="button" value="Poprawa rekordu w bazie" onclick="_upd_list()"/></td>
</tr></table>
</form>
</div>
<div id="data"></div>
<div id="result"></div>
</body>
</html>Klasa CorsFilter.java - ( [listing dokumentu] [link do dokumentu]
package zti.lab04;
import jakarta.ws.rs.container.ContainerRequestContext;
import jakarta.ws.rs.container.ContainerResponseContext;
import jakarta.ws.rs.container.ContainerResponseFilter;
import jakarta.ws.rs.ext.Provider;
import java.io.IOException;
@Provider
public class CorsFilter implements ContainerResponseFilter {
@Override
public void filter(ContainerRequestContext requestContext,
ContainerResponseContext responseContext) throws IOException {
responseContext.getHeaders().add(
"Access-Control-Allow-Origin", "*");
responseContext.getHeaders().add(
"Access-Control-Allow-Credentials", "true");
responseContext.getHeaders().add(
"Access-Control-Allow-Headers",
"origin, content-type, accept, authorization");
responseContext.getHeaders().add(
"Access-Control-Allow-Methods",
"GET, POST, PUT, DELETE, OPTIONS, HEAD");
}
}
public Set<Class<?>> getClasses() {
HashSet<Class<?>> set = new HashSet<Class<?>>();
set.add(HelloResource.class);
set.add(JDBCResource.class);
set.add(JPAResource.class);
set.add(CorsFilter.class);
return set;
}
W tym punkcie dodamy do opracowanej aplikacji klasę LogFilter.java, która umożliwi logowanie żądań i odpowiedzi.
Klasa LogFilter.java - ( [listing dokumentu] [link do dokumentu]
package zti.util;
import jakarta.ws.rs.container.ContainerRequestContext;
import jakarta.ws.rs.container.ContainerRequestFilter;
import jakarta.ws.rs.container.ContainerResponseContext;
import jakarta.ws.rs.container.ContainerResponseFilter;
import jakarta.ws.rs.core.MultivaluedMap;
import jakarta.ws.rs.core.UriInfo;
import jakarta.ws.rs.ext.Provider;
import java.io.IOException;
@Provider
//@Logged
public class LogFilter implements ContainerRequestFilter, ContainerResponseFilter {
@Override
public void filter(ContainerRequestContext reqContext) throws IOException {
System.out.println("-- req info --");
UriInfo uriInfo = reqContext.getUriInfo();
log(uriInfo, reqContext.getHeaders());
}
@Override
public void filter(ContainerRequestContext reqContext,
ContainerResponseContext resContext) throws IOException {
System.out.println("-- res info --");
UriInfo uriInfo = reqContext.getUriInfo();
log(uriInfo, resContext.getHeaders());
}
private void log(UriInfo uriInfo, MultivaluedMap<String, ?> headers) {
System.out.println("Path: " + uriInfo.getPath());
headers.entrySet().forEach(h -> System.out.println(h.getKey() + ": " + h.getValue()));
}
}
public Set<Class<?>> getClasses() {
HashSet<Class<?>> set = new HashSet<Class<?>>();
set.add(HelloResource.class);
set.add(JDBCResource.class);
set.add(JPAResource.class);
set.add(CorsFilter.class);
set.add(LogFilter.class);
return set;
}
Ostatnim elementem, który dodamy do opracowanego projektu, będzie dodanie obsługi funkcjonalności OpenAPI ( opis na stronie https://www.openapis.org/ ) i interfejsu Swagger ( opis na stronie https://swagger.io ). Realizacja tego zadania wymaga dodania do naszej aplikacji kilku elementów, które umożliwią poprawną realizację postawionego zadania. Na początek dodamy dodatkowe pakiety, które są wymagane do realizacji projektu. Następnie dodamy plik (jeżeli nie istnieje) web.xml z odpowiednim wpisem. Aplikację Swagger-UI w wersji dist wstawimy do katalogu webapp oraz na koniec dodamy plik openapi.json.
Wymagane pakiety do realizacji zadania. - [listing dokumentu] [link do dokumentu]
<dependency>
<groupId>io.swagger.core.v3</groupId>
<artifactId>swagger-annotations</artifactId>
<version>2.2.22</version>
</dependency>
<dependency>
<groupId>io.swagger.core.v3</groupId>
<artifactId>swagger-jaxrs2-jakarta</artifactId>
<version>2.2.22</version>
</dependency>
<dependency>
<groupId>io.swagger.core.v3</groupId>
<artifactId>swagger-jaxrs2-servlet-initializer-jakarta</artifactId>
<version>2.2.22</version>
</dependency> W katalogu webapp/WEB-INF w pliku web.xml umieszczamy wpis umożliwiający wywołanie odpowiednich funkcjonalności realizujących zadania OpenAPI.
Plik web.xml po modyfikacji - [listing dokumentu] [link do dokumentu]
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="https://jakarta.ee/xml/ns/jakartaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="https://jakarta.ee/xml/ns/jakartaee https://jakarta.ee/xml/ns/jakartaee/web-app_5_0.xsd"
version="5.0">
<servlet>
<servlet-name>OpenApi</servlet-name>
<servlet-class>io.swagger.v3.jaxrs2.integration.OpenApiServlet</servlet-class>
<init-param>
<param-name>openApi.configuration.resourcePackages</param-name>
<param-value>zti.zti_lab04</param-value>
</init-param>
</servlet>
<servlet-mapping>
<servlet-name>OpenApi</servlet-name>
<url-pattern>/openapi/*</url-pattern>
</servlet-mapping>
</web-app> W kolejnym punkcie umieścimy w katalogu webapp/swagger/dist aplikację obsługującej funkcjonalność aplikacji Swagger.
Do poprawego działania aplikacji Swagger wymagana jest modyfikacja adresu pobierającego strukturę aplikacji w pliku swagger-initializer.js. Poniżej przykład modyfikacji w wymienionym skrypcie.
Przykładowa modyfikacja skryptu swagger-initializer.js - [listing dokumentu] [link do dokumentu]
window.onload = function() {
//<editor-fold desc="Changeable Configuration Block">
// the following lines will be replaced by docker/configurator, when it runs in a docker-container
window.ui = SwaggerUIBundle({
url: "http://localhost:8087/zti_lab04/openapi/swagger.json",
dom_id: '#swagger-ui',
deepLinking: true,
presets: [
SwaggerUIBundle.presets.apis,
SwaggerUIStandalonePreset
],
plugins: [
SwaggerUIBundle.plugins.DownloadUrl
],
layout: "StandaloneLayout"
});
//</editor-fold>
}; Przykładowa zawartość pliku openapi.json - [listing dokumentu] [link do dokumentu]
{
"openAPI": {
"info": {
"version": "1.0",
"title": "zti_lab",
"description": "Swagger API: <b>ZTI Labs</b>",
"termsOfService": "http://localhost:8087/",
"contact": {
"email": "contact@localhost",
"name": "localhost",
"url": "http://localhost:8087/"
},
"license": {
"name": "localhost license",
"url": "http://localhost:8087/"
}
},
"servers": [
{
"url": "http://localhost:8087/zti_lab04/lab",
"description": "Development server"
}
]
}
}
